Switch Extreme L3 X690-48x-2q-4c

1 ₫

Bộ chuyển mạch ExtremeSwitching™ X690-48x-2q-4c:
Hỗ trợ 48 cổng 1/10GBASE-X SFP+; 2 cổng 10/40Gb QSFP+; 4 cổng 10Gb/25Gb/40Gb/100Gb QSFP28+, 2 nguồn AC hoạt động song song, dự phòng. Hệ điều hành EXOS. Băng thông chuyển mạch 1.76 Tbps; Tốc độ chuyển gói 759 Mpps.

Danh mục: Switch Extreme

Mô tả
Đánh giá (0)

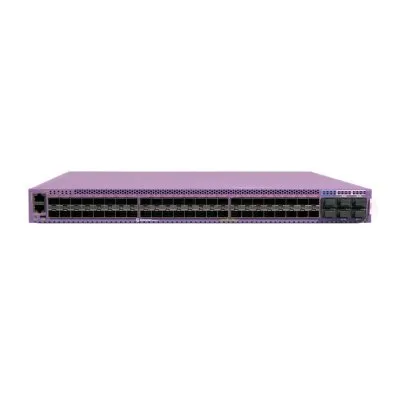

Thiết bị chuyển mạch Switch Extreme X690-48x-2q-4c

Model	X690-48x-2q-4c
Ports	48 1Gb/10Gb SFP+ ports 2 10Gb/40Gb QSFP+ ports 4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out-of-band management port Micro-USB Type A storage port QSFP Port Configurations Support 4 10Gb/40Gb QSFP+ and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or 4 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports (two QSFP port inactive)
Power Supplies	Modular 770W AC power supply (up to two PSUs) Modular 1100W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options
Fan Modules	6 fan modules Front-Back and Back-Front airflow options
Dimensions	17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm)
Performance	1.76Tbps Switching Capacity / 759Mpps Forwarding Rate Average Latency: 800 ns
CPU Memory	2.4GHz Quad core CPU 8GB DDR3 ECC memory 32GB SSD memory
Packet Buffers	12MB
MTBF	435,074 hours
Operating Conditions	0 º – 45ºC operation 10 % to 95% relative humidity, non-condensing 0 – 3000 meters altitude Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks Random vibration: 3 to 500Hz at 1.5 G rms
