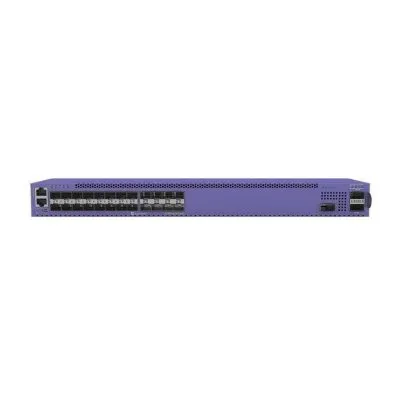

Thiết bị chuyển mạch Switch Extreme X590-24x-1q-2c
| Model | X590-24x-1q-2c |
| Ports | 24 1Gb/10Gb SFP+ ports 1 10Gb/40Gb QSFP+ ports 2 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out-of-band management port Micro-USB Type A storage port Selectable QSFP Port Configurations 1 10Gb/40Gb QSFP+ and 2 100Gb QSFP28 SummitStack-V400 stacking ports or 2 10Gb/25Gb/40Gb/ 50Gb/100Gb QSFP28 (1QSFP+ port inactive) |
| Power Supplies | Modular 770W AC power supply (up to two PSUs) Modular 1100W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options |
| Fan Modules | 4 fan modules Front-Back and Back-Front airflow options |
| Dimensions | 17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm) |
| Performance | 880Gbps Switching Capacity / 714Mpps Forwarding Rate |
| CPU Memory | 2.4GHz Quad core CPU 4GB DDR3 ECC memory 32GB SSD memory |
| Packet Buffers | 12MB |
| MTBF | 435,074 hours |
| Operating Conditions | 0 º – 45ºC operation 10 % to 95% relative humidity, non-condensing 0 – 3000 meters altitude Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks Random vibration: 3 to 500Hz at 1.5 G rms |
