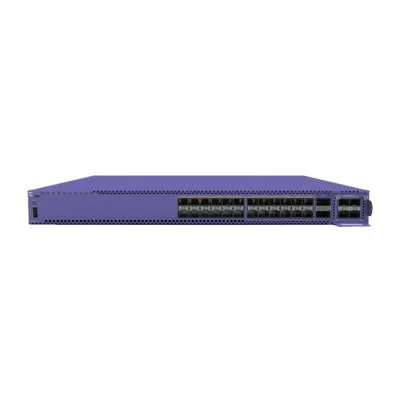

Thiết bị chuyển mạch Switch Extreme 5520-24X
| Model | 5520-24X |
| Interfaces | • 24 x 100M/1G/10GBase-X (SFP+) ports (unpopulated) • 2 x Stacking/QSFP28 ports (unpopulated) • 1 x Serial console port (RJ-45) • 1 x 10/100/1000BASE-T out-of-band management port • 2 x USB A ports for management or external USB flash • 1 x USB Micro-B console port • 1 x VIM slot |
| Performance and Scale | |
| AggregatedSwitchBandwidth | 1080 Gbps |
| FrameForwardingRate | 803.5 mpps |
| Software Scaling Values | |
| 5520 with Switch Engine | • MAC Table: 114,688/65,536 • IPv4 ARP Table: 60,000/41,000* • IPv4 Route Table: 81,000/16,000* • IP Multicast Entries (S,G,V): 43,000/24,000* • IPv6 ND Table: 18,000 • IPv6 Route Table: 40,000/8,000* • ACL (Ingress/Egress): 9,216/1,024 • QoS Egress Queues/Port: 8 • VLANs:4,094 • Routed VLANS: 2,048 One Policy Scaling • Policy Profiles: 63 • Unique permit/deny rules per switch: 8,120 • Authenticated policy users/switch: 9,216 |
| 5520 with Fabric Engine | • MAC Table: 40,960 (81,920 non-Fabric) • IPv4 ARPARP/IP Host Table: 16,000/48,000 • IPv4 Route Table: 15,500 • IP Multicast Routes: 4,000 • IPv6 ND Table: 16,000 • IPv6 Route Table: 7,500 • IPv4 ACL (Ingress/Egress): 1,024/336 • QoS Egress Queues/Port: 8 • VLANs: 4,059 • Routed VLANS: 500 Fabric Connect Scaling • Fabric Adjacencies per switch: 128 • Fabric nodes per area (BEB + BCB): 800 • BEB Nodes per VSN: 500 • L2 VSN: 3500 • L3 VSN: 256 |
| Weights and Dimensions | |
| Weight | 6.25 kg |
| Physical Dimensions | 441 mm x 44 mm x 442 mm |
| Environmental | • Temp: 0° C to 50° C (32° F to 122° F) for Front-Back cooling • Temp: 0° C to 45° C (32° F to 104° F) for Back-Front cooling • Humidity: 10% to 95% relative humidity, non-condensing |
