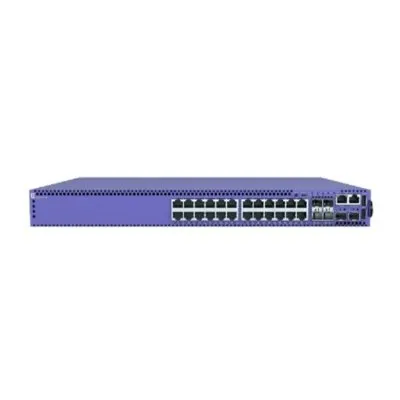

Thiết bị chuyển mạch Switch Extreme 5420F-24T-4XE
| Model | 5420F-24T-4XE |
| Interfaces | 24 x 10/100/1000Base-T ports • Full/Half-Duplex (autosensing) • MACsec-capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port |
| Performance and Scale | |
| Aggregated Switch Bandwidth | 208 Gbps |
| Frame Forwarding Rate | 154.8 mpps |
| Software Scaling Values | |
| 5420F Series with Switch Engine | • MAC Table: 32,000 • IPv4 ARP Table: 16,000 • IPv4 Route Table: 12,000 • IP Multicast Entries (S,G,V): 6,000 • IPv6 Route Table: 6,000 • IPv6 Neighbor Table 6,000 • ACL (Ingress/Egress): 8,000/1,024 • QoS Egress Queues/Port: 8 • VLANs: 4,094 • IP Interfaces (aka Routed VLANs): 1,533 One Policy Scaling • Policy Profiles: 63 • Unique Permit/deny rules per switch: 4,024 |
| 5420F Series with Fabric Engine | • MAC Table: 16,000 (32,000 non-Fabric) • IPv4 ARP Table: 8,000 • IPv4 Route Table: 11,750 • IP Multicast Entries (S,G,V): 4,000 • IPv6 Route Table: 5,750 • IPv6 Neighbor Table 8,000 • ACL (Ingress/Egress): 1,024/336 • QoS Egress Queues/Port: 8 • VLANs: 4,059 • IP Interfaces (aka Routed VLANs): 248 Fabric Connect Scaling • Fabric Adjacencies per switch: 50 • Fabric nodes per area (BEB + BCB): 500 • BEB Nodes per VSN (I-SID): 500 • L2 VSNs: 512 • L3 VSNs: 64 |
| Weights and Dimensions | |
| Weight | 4.10 kg |
| Physical Dimensions | 441 mm x 44 mm x 287 mm |
