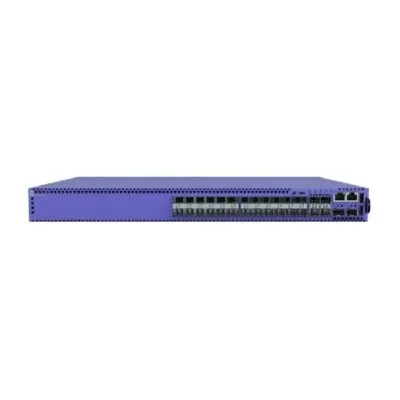

Switch Extreme L3 5420F-24S-4XE

1 ₫

Bộ chuyển mạch ExtremeSwitching 5420F-24S-4XE:
Hỗ trợ 24 cổng 1000BASE-X SFP, 2 cổng stacking/SFP-DD, 4 cổng 10G unpopulated SFP+ MACSec capable, 1 nguồn cố định, 1 quạt tản nhiệt, 1 khe cắm nguồn mở rộng.
Có sẵn hai hệ điều hành EXOS và VOSS, bao gồm 1 năm bản quyền ExtremeCloud IQ Pilot

Danh mục: Switch Extreme

Mô tả
Đánh giá (0)

Thiết bị chuyển mạch Switch Extreme 5420F-24S-4XE

Model	5420F-24S-4XE
Interfaces	24 x 100/1000Base-X (SFP) ports (unpopulated) • MACsec-capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) • MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
Performance and Scale
Aggregated Switch Bandwidth	208 Gbps
Frame Forwarding Rate	154.8 mpps
Software Scaling Values
5420F Series with Switch Engine	• MAC Table: 32,000 • IPv4 ARP Table: 16,000 • IPv4 Route Table: 12,000 • IP Multicast Entries (S,G,V): 6,000 • IPv6 Route Table: 6,000 • IPv6 Neighbor Table 6,000 • ACL (Ingress/Egress): 8,000/1,024 • QoS Egress Queues/Port: 8 • VLANs: 4,094 • IP Interfaces (aka Routed VLANs): 1,533 One Policy Scaling • Policy Profiles: 63 • Unique Permit/deny rules per switch: 4,024
5420F Series with Fabric Engine	• MAC Table: 16,000 (32,000 non-Fabric) • IPv4 ARP Table: 8,000 • IPv4 Route Table: 11,750 • IP Multicast Entries (S,G,V): 4,000 • IPv6 Route Table: 5,750 • IPv6 Neighbor Table 8,000 • ACL (Ingress/Egress): 1,024/336 • QoS Egress Queues/Port: 8 • VLANs: 4,059 • IP Interfaces (aka Routed VLANs): 248 Fabric Connect Scaling • Fabric Adjacencies per switch: 50 • Fabric nodes per area (BEB + BCB): 500 • BEB Nodes per VSN (I-SID): 500 • L2 VSNs: 512 • L3 VSNs: 64
Weights and Dimensions
Weight	4.12 kg
Physical Dimensions	441 mm x 44 mm x 287 mm
