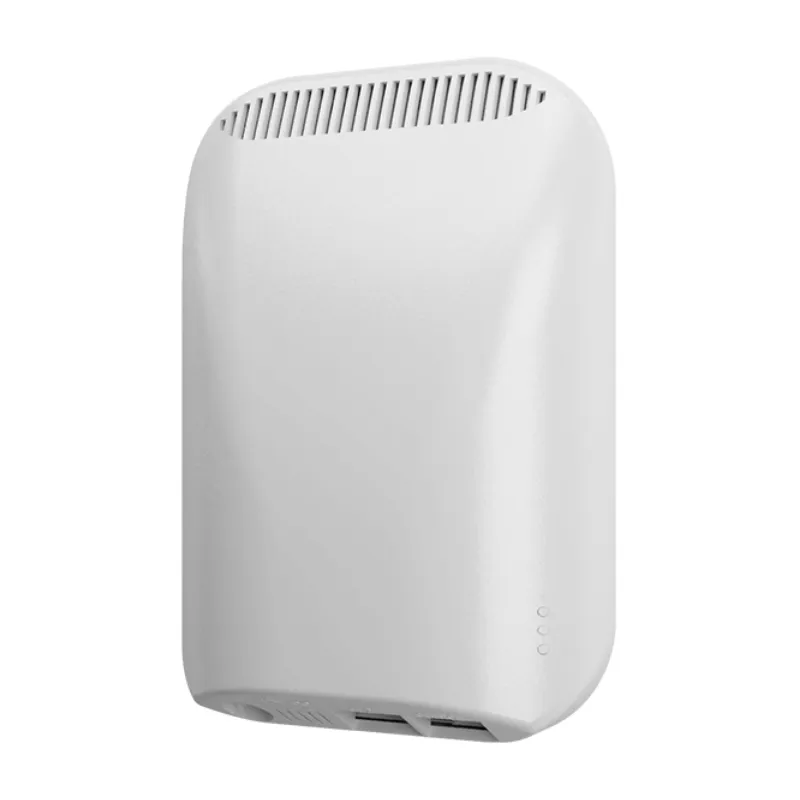

Thiết bị phát sóng Wifi Extreme WiNG AP 7602
| Product Name | ExtremeWireless WiNG AP 7602 |
| 802.11ac Capabilities | – Multi-operational modes including real-time dual-band, dual-concurrent 2.4GHz + 5GHz concurrent single stream (1×1:2.4G + 1×1:5G) – 2.4GHz or 5GHz dual stream (2×2:2.4G or 2×2:5G) – 20, 40, 80 MHz Channels – AMSDU, AMPDU, RFIS, STBC (when running 2×2 single band), LDPC – MIMO power save (static and dynamic) – Maximal Ratio Combining (MRC) when running single-band mode 802.11ac Wave 2 |
| Networking | |
| Layer 2 and Layer 3 | Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE, and LLDP |
| Security | Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WIDs/WIPs, IPSec, RADIUS svr |
| QoS | WMM, WMM-UAPSD, 802.1p, COS, Diffserv. Role-based QoS and packet marking |
| Radio Specifications | |
| Mode: 2.4GHz | Maximum conducted Tx power: 19dBm |
| Mode: 5GHz | Maximum conducted Tx power: 17dBm |
| Transmit Power Increments | 1dBm |
| Operating Channels and Frequencies | – 2.4 GHz Band: Channel 1-13; 2412 to 2472 MHz – 5.2 GHz Band: Channel 36-165; 5180 to 5850 MHz 2.4 GHz – Bluetooth: Channel 0-78 |
| Wireless Medium | DSSS, OFDM, MIMO |
| Network Standard | – WPA2, WMM, WMM-UAPSD, L2TPv3, Client VPN, MESH, Captive Portal server, BT 2.0, BLE 4.0 – 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54 Mbps – 802.11a: 6,9,12,18,24,36,48, and 54 Mbps – 802.11n: MCS HT 0-15 up to 300 Mbps – 802.11ac: MCS VHT 0-9 up to 867 Mbps |
| Physical Characteristics | |
| Dimensions | 5.7 “ x 4” x 1.1” (145 x 102 x 28.6mm) |
| Weight | 0.5lbs (0.32kg) |
| Housing | Plastic with aluminum backplate |
| LEDs | Indicate system status: Green, Amber, Blue |
| LAN | (1) x IEEE 802.3 Gigabit Ethernet auto-sensing |
| Antenna | Internal |
| User Environment | |
| Operating Temperature | 32° F to 104° F / 0° C to 40° C |
| Operating Humidity | 95% RH non-condensing |
| Electrostatic Discharge | 15kV air, 8kV contact |
| DC Specifications | |
| Typical / Max Power | 4.5 watts / 6 watts |
| DC Power | 12VDC, 850ma, 2.5mm center positive |
| Accessories | |
| DC Power Supply | PWR-BGA12V50W0WW1 |
| DC Line Cord, 2.5 mm | CBL-DC-387A1-01 |
