Extreme AP410i-1-WR, Bộ phát wifi 6 (802.11AX)_19

Bộ phát wifi 6 Extreme AP410i-1-WR, Indoor, 2 băng tần

Name: Bộ phát wifi 6 Extreme AP410i-1-WR, Indoor, 2 băng tần
Availability: Discontinued
Rating: 5 (326 reviews)

1 ₫

Bộ phát sóng không dây chuẩn 802.11ax
Thiết bị AP410i-1-WR 802.11ax/ac/abgn.
Cloud-ready, Dual Radio, 4×4:4 + 2×2:2 Full time 2×2:2 Sensor. Internal Antenna

Danh mục: Wifi Extreme

Mô tả
Đánh giá (0)

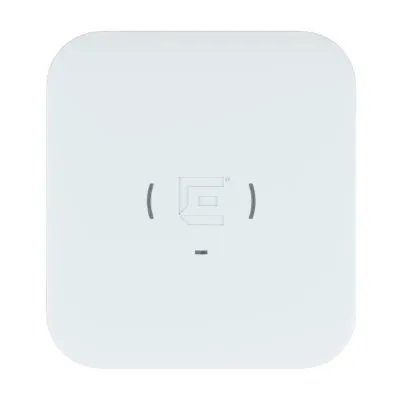

Thiết bị Wi-Fi 6 Extreme AP410i Indoor Access Point

Model	AP410i-1-WR
Interfaces	• (1) 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port • (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45 • USB3.0, Type A , 0.5A
Radio Specifications	Max Users • SSID per Radio/Total: 8/16 • Users per Radio/total: 512/1024 802.11n • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 2×2 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF ( Transmit Beamforming) 802.11ax • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 574 Mbps) • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
Power Specifications	• IEEE 802.3at PoE Power
Power Options	• Power Draw: ₀ Typical: 14.6 W; Max: 18.7 W (w/o USB) ₀ Typical: 17.6 W; Max: 21.7 W (w/ USB) • 802.3at Power over Ethernet (PoE) capable • Gigabit Ethernet port (RJ-45 power input pins: • Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector
Physical	• 165mm x 180mm x 47mm • 0,6kg
Antennas	– Internal Antennas • (2) Integrated single band, 2.4-2.5 GHz omnidirectional antennas • (4) Integrated single band, 5.1-5.8 GHz omnidirectional antennas • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional antennas for Sensor
Mounting	• Wall, and flat tile and 15/16″ wide tbar, mount included as part of AP. • Built-in slot for Kensington type locks • 5/8″ Ceiling tile protrusions on 9/16″. 15/16″ and 1.5″ wide t-bars sold as an accessory • Flush ceiling tiles with 9/16″. 15/16″ and 1.5″ wide t-bars sold as an accessory
Environmental	• Operating: 0 to 50°C • Storage: -40 to 70°C • Humidity: 0% to 95% (non-condensing)
