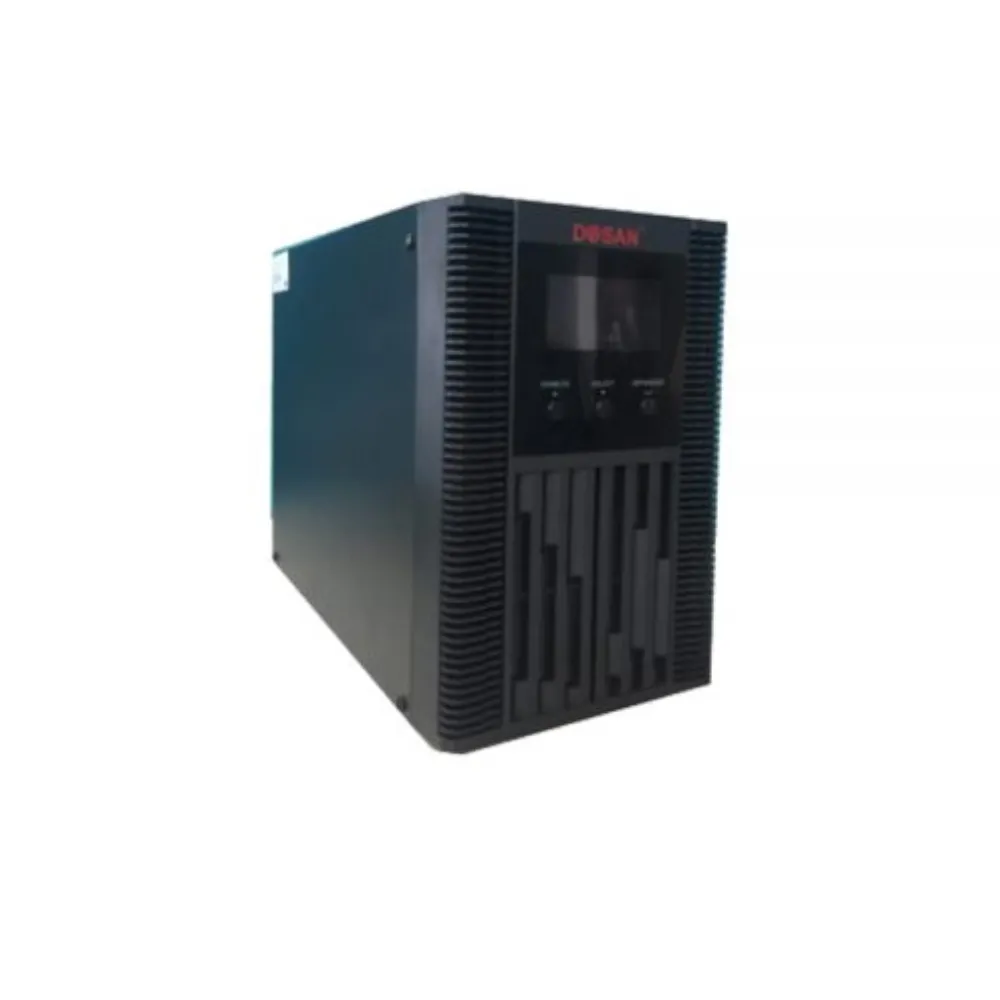

Chi tiết Thiết bị UPS DOSAN Online 1KVA/0.9KW Bộ Lưu Điện UL-1000:
| Product Name (Tên sản phẩm) | Bộ Lưu Điện UPS DOSAN Online 1KVA/0.9KW |
| P/N | UL-1000 |
| Wattage | 1KVA/0.9KW |
| Input Voltage Low Transfer | L-N:185 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load Or 85Vac ± 3% |
| Input Voltage Low Back | L-N:195 VAC ± 3% @ 100% load,195 VAC ± 3% @ 50% load Or 95Vac ± 3% |
| Input Voltage High Transfer | L-N:300VAC ± 3% Or 150Vac ± 3% |
| Input Voltage High Back | L-N:285 VAC ± 3% Or 140Vac ± 3% |
| Input Frequency range | 50/60Hz+/-10% |
| Input Frequency SYN | 46-54Hz at 50Hz/56-64Hz at 60Hz |
| Input Breaker | 10A |
| Output Voltage | 208/220/230/240VAC or 110/120/127(1-3KVA) |
| Output Voltage regulation | ± 2% |
| Output Frequency(Line Model) | 46-54Hz at 50Hz/56-64Hz at 60Hz |
| Output Frequency(Battery Mode) | 50/60Hz ± 0.02Hz |
| Output waveform | Pure Sine wave |
| System Efficiency | Full Load≥92% |
| Number of Battery Per Set | 3 |
| Battery Back Time | Depends on external battery |
| Battery Recharge Time(to 90%) | 5 Hours |
| Interface | Standard RS232 interface,( USB ,dry contact,SNMP card optional ) |
