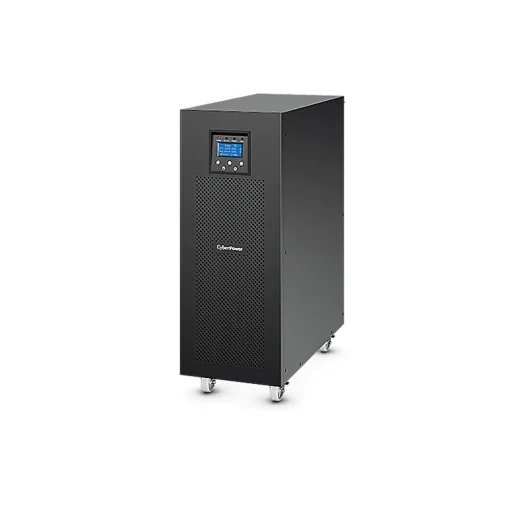

Tính năng cơ bản Bộ Lưu Điện UPS CyberPower OLS6000E Online 6000VA/5400W
* Tower; LCD & LED; Online; Energy-Saving Technology;
* Capacity: 6000VA/5400W; Input Voltage: 190-280Vac;
* Outlets: Terminal Block; Transfer to bypass ;
* Internal Batteries: 20x12V/7AH; Runtime: 15mins@2700W, 5mins@5400W;
* Communication Ports: (1) Serial Port (RS232), (1) USB Port, (1) EPO/ROOl & Optional SNMP card;
* Software: PowerPanel Business Edition.
Thông tin kỹ thuật Bộ Lưu Điện UPS CyberPower OLS6000E Online 6000VA/5400W
| Model | OLS6000E |
| Capacity (VA/W) | 6000VA / 5400W |
| Typology | Online (Double Conversion) |
| Energy-Saving Technology | Yes, ECO Mode Efficiency > 96% |
| Input | |
| Input Type | Terminal Block |
| Frequency Range | 45 ~ 65Hz |
| Output | |
| UPS Outlets (Numbers) | Terminal Block |
| On Battery Output Voltage | Pure Sine Wave at 208, 220, 230, 240 Vac (Configurable) |
| On Battery Output Voltage Distortion (@Nominal Battery Voltage) | < 2%(Linear Load), <5%(Non-Linear Load) |
| On Battery Output Frequency | 50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% |
| Transfer Time (Typical) | 0 ms |
| Overload Protection | Line Mode: 10 minutes minimum,then transfer to bypass @1050%; 1 second minimum then transfer to bypass@Load>170% Battery Mode: 2 minutes minimum,then shutdown @1050% |
| Short Circuit Protection | UPS Output Cut off Immediately or Circuit Breaker Protection |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| DSL/ Phone/ Fax/ Modem protection | No |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | (20) 12V / 7AH |
| Typical Recharge Time | 7 Hours |
| Runtimes | |
| Half load-Full load (mins) | 15/5 |
| Status Indication | |
| Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault, Replace Battery |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/ Auto-Restart | Yes |
| Auto-Overload Recovery | Yes |
| Cold Start (DC Start) | Yes |
| Connectivity Ports | (1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
| SNMP/ HTTP Capable | Optional |
| Dimensions | 708 x 260 x 550 mm |
| Weight | 70 kg |
