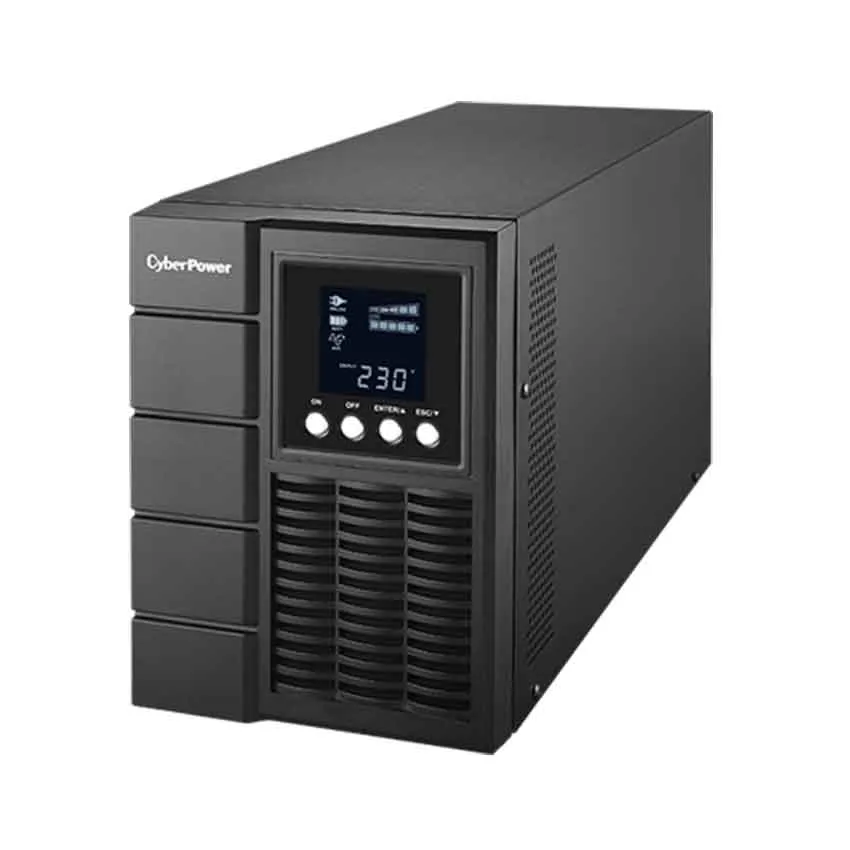

Thông tin kỹ thuật UPS CyberPower OLS1000E Online 1000VA/900W
| Model | OLS1500E |
| Capacity (VA/W) | 1500VA / 1350W |
| Typology | Online (Double Conversion) |
| Energy-Saving Technology | Yes, ECO Mode Efficiency > 95% |
| Input | |
| Voltage Range | 120~139VAC for 0~25% Load |
| 140~159VAC for 0~50% Load | |
| 160~179VAC for 0~75% Load | |
| 180~280VAC for 0~100% Load | |
| Input Type | IEC C14 |
| Frequency Range | 40~70Hz |
| Output | |
| UPS Outlets (Numbers) | (4) IEC C13 |
| On Battery Output Voltage | Pure Sine Wave at 208, 220, 230, 240 Vac (Configurable) |
| On Battery Output Voltage Distortion (@Nominal Battery Voltage) | ≤ 3% (Linear Load), ≤ 5% (Non-Linear Load) |
| On Battery Output Frequency | 50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5% |
| Transfer Time (Typical) | 0ms |
| Overload Protection | AC Mode: Warning only @ 110% > Load >105%, |
| Transfer to bypass after 60sec @ 120%>Load>110%, | |
| Transfer to bypass immediately@ Load>120% Battery Mode: Warning only @ 110%>Load>105%, | |
| Shutdown after 10sec @ 120%>Load>110%, | |
| Shutdown immediately @ Load>120% | |
| Bypass Mode: Warning only @ 130%>Load>105%, | |
| Shutdown immediately @ Load>130% | |
| Surge Protection and Filtering | |
| Surge Protection | Yes |
| DSL/Phone/Fax/Modem protection | RJ11/RJ45 (One In/One Out) |
| Short Circuit Protection | UPS Output Cut off Immediately or Circuit Breaker Protection |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | (3) 12V / 9AH |
| Configurable External Battery Pack (Max.) | 3 |
| Typical Recharge Time | 5 |
| Runtimes | |
| Half load-Full load (mins) | 14/5 |
| Status Indication | |
| Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault, Replace Battery |
| Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Communication | |
| Power Management Software | PowerPanel® Business Edition |
| Management | |
| Self-Test | Yes |
| Auto-Charge/Auto-Restart | Yes |
| Auto-Overload Recovery | Yes |
| Cold Start s (DC Start) | Yes |
| Connectivity Ports | (1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO |
| SNMP/HTTP Capable | Optional |
| Dimensions | 225 x 151 x 394mm |
| Weight | 15.3 kg |
